What HRAP unequal-angle sizes are listed?
Laxcon publishes HRAP stainless steel unequal angles with legs from 25 x 15 mm through 100 x 75 mm, with the available thicknesses listed for each profile.

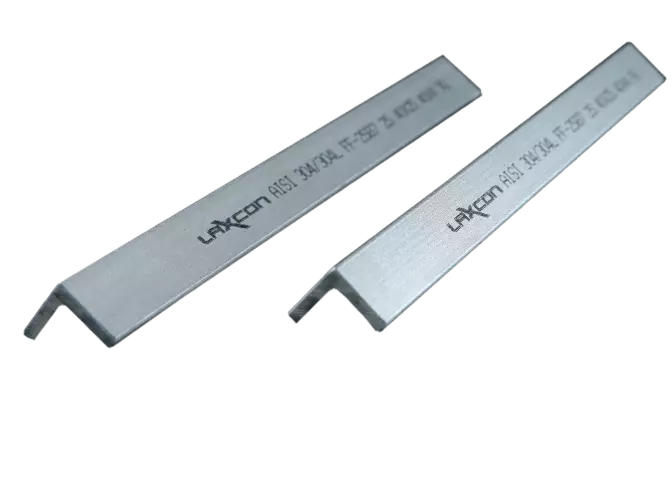

HRAP Unequal Angles
Our integrated manufacturing edge gives us the ability to produce steel in a variety of finishes, surface options and profiles
25 × 15 mm to 100 × 75 mm
Up to 6.4 metres
ASTM A484 EN10056
OVERVIEW
Product Description
Stainless Steel HRAP Unequal Angles bar are variations of hot rolled steel profiles that are in high demand in the automotive industry. A Stainless Steel HRAP unequal angle has a different side length that can be seen with the naked eye. They are used in automobiles as well as the construction field where unequal support is needed frequently. As one of the top stainless steel HRAP unequal angle bar producers in India, we produce a comprehensive range of products.
Composition limits for the grades rolled as unequal angle are in the grade reference, and the weight calculator takes the two leg lengths and the thickness.
SPECIFICATION
Supply Conditions
- Length
- Up to 6.4 metres
- Tolerances
- ASTM A484 EN10056
- Supply condition
- Hot rolled, Annealed & Pickled (HRAP)
- GRIT Polish
- As per customer's request
- Bar ends Finish
- Deburred Ends, Plain Ends without Burrs or Sharp Edges.
- Specifications
- As per EN, DIN, JIS, ASTM, BS, ASME, etc.
- Shot Blasting as per customer’s request
- Ink Jet printing as per grade & size
- Free from Radioactive elements, Mercury & Lead contamination
- Grade confirmation through PMI testing with Handheld Spectrometers
Size Range
| LEG SIZE (MM) | LEG SIZE (IN) | THICKNESS (MM) | THICKNESS (IN) |
|---|---|---|---|
| 25 × 15 | 1" × 3/5" | 5 | 3/16" |
| 30 × 15 | 3 | 1/8" | |
| 30 × 20 | 3 | 1/8" | |
| 40 × 20 | 3 | 1/8" | |
| 40 × 30 | 5, 6 | 3/16", 1/4" | |
| 50 × 25 | 2" × 1" | 5, 6 | 3/16", 1/4" |
| 50 × 30 | 5, 6 | 3/16", 1/4" | |
| 50 × 40 | 5, 6 | 3/16", 1/4" | |
| 60 × 30 | 5, 6 | 3/16", 1/4" | |
| 60 × 40 | 5, 6 | 3/16", 1/4" | |
| 70 × 50 | 5 | 3/16" | |
| 75 × 40 | 6, 10 | 1/4", 2/5" | |
| 76.2 × 38.1 | 3" × 1-1/2" | 6.35 | 1/4" |
| 76.2 × 50.8 | 3" × 2" | 4.76, 6.35, 9.52 | 3/16", 1/4", 3/8" |
| 100 × 50 | 4" × 2" | 6, 10 | 1/4", 2/5" |
| 100 × 75 | 4" × 3" | 6, 9.52, 10 | 1/4", 3/8", 2/5" |
Frequently Asked Questions
Which standards and lengths apply to unequal angles?
Stainless steel unequal angles are supplied up to 6.4 metres in hot-rolled, annealed and pickled condition to ASTM A484 and EN 10056 tolerances.
Which finishing and identification options are available?
Unequal angle ends can be deburred or supplied plain without sharp edges. Grit polishing and shot blasting are available on request, with inkjet marking and PMI grade confirmation.
How can HRAP stainless steel unequal angles be packed and traced?
Laxcon packs HRAP stainless steel unequal angles in standard bundles of 500 to 1,000 kg with HDPE or LDPE wrapping and two lifting slings. ISPM 15 wooden boxes and fibre-tube packing are available, and every bundle is marked with heat number, grade, size, and net and gross weight.
What should an RFQ for HRAP stainless steel unequal angles include?
An enquiry for HRAP stainless steel unequal angles is quotable when it states the grade, governing standard, metric size or profile, tolerance, finish or heat-treatment condition, length, quantity, test or inspection requirement, and delivery destination.
