Forged & Proof Machined Stainless Steel Bars

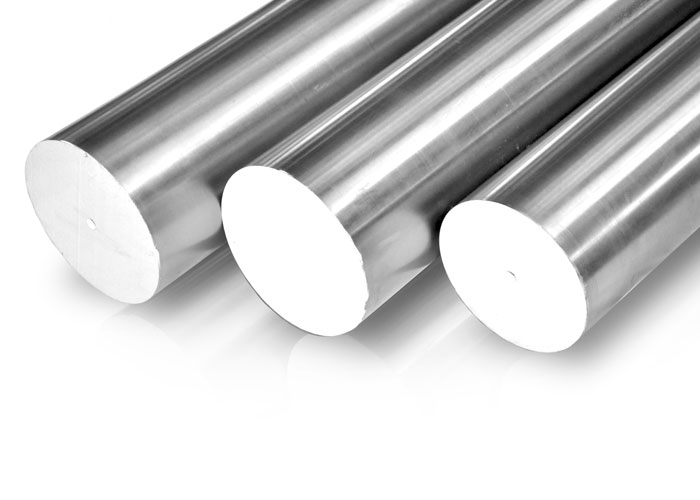

Proof machined stainless steel bar, 120 mm to 550 mm, in lengths up to 6 metres
Product Description
Our largest bars, 120 mm to 550 mm, are supplied proof machined: rough turned below the outer skin so the surface is proven clean and free of defects before the customer's final machining. Proof machined bars carry a superior, inspected surface and cater to the biggest sizes in our round bar range.
Weight per metre at these diameters is worked out by the weight calculator, and grade chemistry is in the grade reference.
Proof Machined Bar Specifications
- Size range
- 120 mm - 550 mm (4-3/4" - 21-2/3")
- Length
- Up to 6 metres
- Tolerance
- ASTM A484, EN10060
- Heat treatment
- Soft Annealed, Solution Annealed, Normalizing, Quenched & Tempered
- Contamination
- Free from radioactive elements, mercury and lead
- Testing
- PMI grade check with handheld spectrometers
- Inspection
- Ultrasonic testing
- Weight per metre
- Weight table on this page
- Production
- Made to order in every grade listed on this page
- Certifications
- ISO 9001:2015
Available Sizes
Weight per metre
| Diameter (mm) | kg per metre | Metres per tonne |
|---|---|---|
| 120 | 89.35 | 11.2 |
| 150 | 139.60 | 7.2 |
| 200 | 248.19 | 4.0 |
| 250 | 387.79 | 2.6 |
| 300 | 558.42 | 1.8 |
| 350 | 760.07 | 1.3 |
| 400 | 992.74 | 1.0 |
| 450 | 1,256.44 | 0.8 |
| 500 | 1,551.16 | 0.6 |
| 550 | 1,876.91 | 0.5 |
Density 7.90 g/cm³ (π/4 x d² x 0.0079). A 304 bar at 7.93 g/cm³ runs 0.4 percent heavier, a 316 bar at 7.98 g/cm³ 1 percent heavier. Sizes are the published range at the nominal diameters shown.
Proof Machined Bar Grades
Austenitic
Proof Machined Bar Reference
Governing standards
- EN 10088-3
- Stainless steels: technical delivery conditions for semi-finished products, bars, rods, wire, sections and bright products for general purposes. Composition, heat treatment condition and mechanical properties per grade.
- ASTM A276/A276M
- Stainless steel bars and shapes: composition, condition, mechanical properties and finish designations for hot-finished and cold-finished bar.
- ASTM A484/A484M
- General requirements for stainless steel bars, billets and forgings: permissible variations in dimensions, straightness, weight and length, and the test and marking requirements every bar order inherits.
- ASTM A473
- Stainless steel forgings.
- ASTM A314
- Stainless steel billets and bars for forging.
- EN 10204
- Metallic products, types of inspection documents: the 2.2 test report and the 3.1 and 3.2 inspection certificates a purchase order can call for.
Proof machining
Above 120 mm a stainless bar is forged from an ingot or a bloom rather than rolled, and the forged surface carries scale, a decarburised skin and the small laps and folds of the hammer. Proof machining turns that skin off, usually 3 to 6 mm on diameter, so that the surface the customer receives has been seen and inspected in the bright and any defect that would otherwise appear halfway through a customer's machining programme is found at the works. The bar is then ultrasonically tested through a clean surface, which is the other reason the skin comes off.
The condition is chosen for the machining that follows: soft annealed or solution annealed for the austenitic grades, normalised or quenched and tempered for the martensitic and alloy grades. At 550 mm a metre of bar weighs 1.88 tonnes, so lengths are supplied cut to the customer's piece length rather than at the 6 metre maximum.
Forged bar against hot rolled bar
The hot rolled round bar covers 16 to 125 mm from the rolling mill; the forged and proof machined bar covers 120 to 550 mm from the press. The overlap at 120 to 125 mm is decided by the grade and the end use: a rolled bar is the lower-cost route, a forged bar has the higher reduction ratio that a large shaft or a pressure part with a through-thickness property requirement is specified on. The forging quality ingot is the starting stock for both this page and the customer's own forge.
Frequently Asked Questions
What proof-machined bar sizes does Laxcon supply?
Laxcon supplies proof machined bars from 120 mm to 550 mm diameter, in lengths up to 6 metres.
Which tolerances and heat treatments are available?
Proof machined bars can be supplied to ASTM A484 or EN 10060 tolerances in soft-annealed, solution-annealed, normalized, quenched or tempered condition.
Are proof-machined bars ultrasonically tested?
Proof machined bars are ultrasonically tested, and the grade is confirmed by PMI with a handheld spectrometer.
How can proof-machined stainless steel bars be packed and traced?
Every proof machined bar is marked with heat number, grade, size and weight.
Which grades are proof machined bars supplied in?
Proof machined bars are supplied in the grades listed in the grades section. The austenitic grades are delivered soft annealed or solution annealed, and the martensitic and alloy grades normalised or quenched and tempered.
What is the price of proof machined bars per kg?
Proof machined stainless steel bar is priced per kilogram, and the price depends on the grade, the size, the tolerance, the finish, the length and the quantity ordered. Laxcon Steels quotes each order on request; what moves the price of stainless steel in general is set out in the stainless steel price article.
What is the weight of a proof machined stainless steel bar per metre?
A proof machined round bar weighs its diameter in millimetres squared times 0.006205 kg per metre at 7.90 g/cm³: a 200 mm bar weighs 248.20 kg per metre and a 300 mm bar 558.45 kg. A 304 bar runs 0.4 percent heavier and a 316 bar 1 percent heavier.
In which lengths are proof machined bars supplied?
Proof machined bars are supplied up to 6 metres long. A 550 mm bar weighs 1.88 tonnes per metre, so the largest sizes are cut to the customer’s piece length rather than supplied at the maximum length.
More questions
What does proof machined mean?
A proof machined bar has been rough turned below its outer skin, usually 3 to 6 mm on diameter, so that the surface is inspected in the bright before the customer’s final machining. Removing the skin also lets the bar be ultrasonically tested through a clean surface.
What does an ASTM A484 or EN 10060 tolerance mean on a proof machined bar?
Both standards give the bar a plus-and-minus allowance about the nominal diameter that widens with size, plus an ovality limit, rather than an ISO 286 class. The tolerance classes article sets out how these allowances compare with the bright bar classes.
When is a proof machined bar chosen over a hot rolled bar?
Hot rolled round bar covers 16 mm to 125 mm from the rolling mill, and proof machined bar covers 120 mm to 550 mm. In the 120 to 125 mm overlap the grade and the end use decide, and rolled bar is the lower-cost route.
Which company supplies proof machined round bars in India?
Laxcon Steels supplies proof machined stainless steel bars from Gujarat, India, from 120 mm to 550 mm and up to 6 metres long, proof machined and ultrasonically tested.
What is a forged steel bar?
A forged steel bar is a bar worked to size by a hammer or press from an ingot or a bloom, the route for diameters larger than a rolling mill reaches, and the ingot, bloom and billet article explains why large bar starts from those forms.
Can a proof machined stainless steel bar rust?
A proof machined stainless steel bar resists rust because its chromium forms a thin oxide film on the surface, and Does stainless steel rust explains the conditions in which it can.
