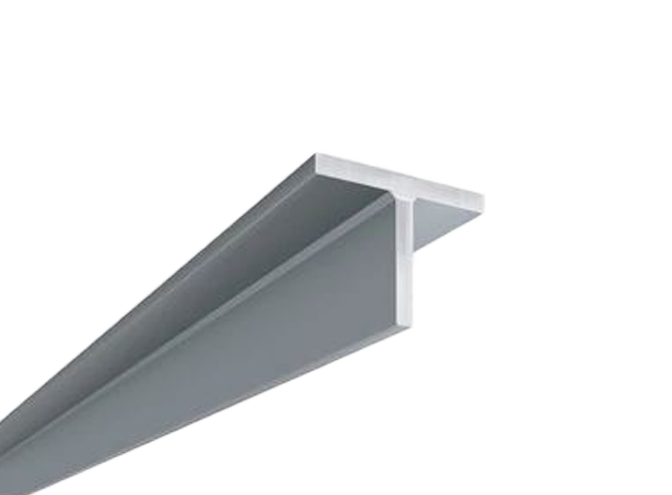

Stainless Steel T-Profile

Our integrated manufacturing edge gives us the ability to produce steel in a variety of finishes, surface options and profiles

50 × 50 × 5 mm Up to 6.4 metres ASTM A484, EN 10055 REQUEST A QUOTE

OVERVIEW

Product Description

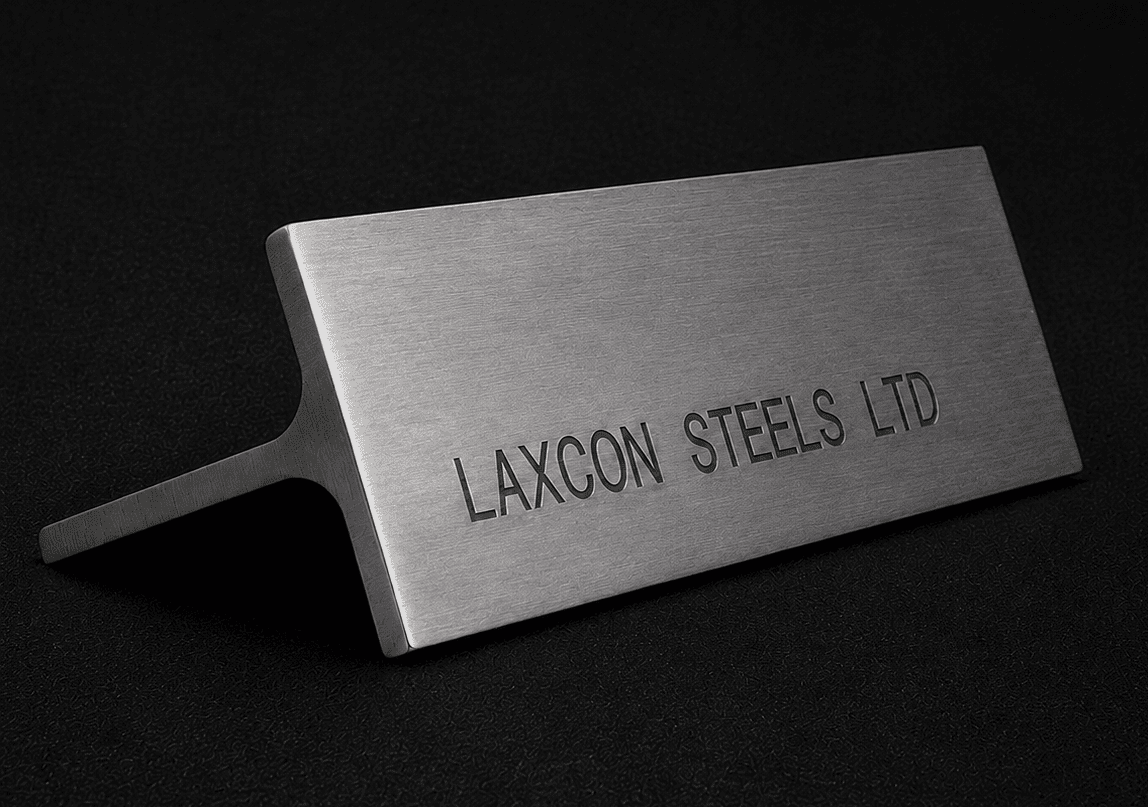

Stainless Steel T Profile / Patti is mainly used to seal and finish edges on furniture and other applications where two components join, such as worktops, wall panels, etc. These products can be rolled or extruded or even laser fused, ensuring excellent durability and precision.

T Patti / Profile products are manufactured to have excellent weldability and good corrosion resistance, making them ideal for use in machinery and equipment and other industrial purposes.

Composition limits for the grades rolled as T-profile are in the grade reference.

SPECIFICATION

Supply Conditions

Profile size: 50 × 50 × 5 mm (2" × 2" × 3/16")
Length: Up to 6.4 metres
Tolerance: ASTM A484, EN 10055
Supply condition: Hot rolled, Annealed & Pickled (HRAP)

Hot Rolled Annealed & Pickled (HRAP)
Inkjet printing as per grade & size
Free from Radioactive elements, Mercury & Lead contamination
Grade confirmation through PMI testing with Handheld Spectrometers
Weight per metre for every listed size: metal weight calculator

Size Range

PROFILE SIZE (MM)	PROFILE SIZE (IN)
50 × 50 × 5	2" × 2" × 3/16"

Governing standards

EN 10088-3: Stainless steels: technical delivery conditions for semi-finished products, bars, rods, wire, sections and bright products for general purposes. Composition, heat treatment condition and mechanical properties per grade.
EN 10055: Hot rolled steel equal flange tees with radiused root and toes: dimensions and tolerances on shape and dimensions.
ASTM A276/A276M: Stainless steel bars and shapes: composition, condition, mechanical properties and finish designations for hot-finished and cold-finished bar.
ASTM A484/A484M: General requirements for stainless steel bars, billets and forgings: permissible variations in dimensions, straightness, weight and length, and the test and marking requirements every bar order inherits.
EN 10204: Metallic products, types of inspection documents: the 2.2 test report and the 3.1 and 3.2 inspection certificates a purchase order can call for.

Weight per metre

Section (mm)	kg per metre
50 x 50 x 5	3.75

Density 7.90 g/cm³, flange plus stem with the overlap counted once, before the root radius allowance.

T-profile against angle

The T section stands a stem on the centre of a flange, so it is symmetrical about the stem and is used where a stiffener must not lean or where the profile is seen from both sides: edge trims, panel joints, worktop and counter edges, and the ribs on tanks and hoppers. An equal angle of the same leg length is the asymmetric alternative, cheaper to roll and easier to fix into a corner, but it twists under a load along the stem where the T does not. The single 50 x 50 x 5 mm section is rolled, annealed and pickled, in lengths to 6.4 metres.

Frequently Asked Questions

What stainless steel T-profile size is published?

Laxcon publishes the stainless steel T-profile at 50 x 50 x 5 mm, in lengths up to 6.4 metres.

Which standards and supply condition apply to T-profiles?

The T-profile is supplied hot rolled, annealed and pickled, to ASTM A484 and EN 10055 tolerances.

How are stainless steel T-profiles identified?

The published supply information for T-profiles includes inkjet marking and grade confirmation through handheld PMI.

How can stainless steel T-profiles be packed and traced?

Laxcon packs stainless steel T-profiles in standard bundles of 500 to 1,000 kg with HDPE or LDPE wrapping and two lifting slings. ISPM 15 wooden boxes and fibre-tube packing are available, and every bundle is marked with heat number, grade, size, and net and gross weight.

What should an RFQ for stainless steel T-profiles include?

An enquiry for stainless steel T-profiles is quotable when it states the grade, governing standard, metric size or profile, tolerance, finish or heat-treatment condition, length, quantity, test or inspection requirement, and delivery destination.
