Stainless Steel Threaded Bars

Our integrated manufacturing edge gives us the ability to produce steel in a variety of finishes, surface options and profiles

M 6 - M 45 Up to 6 metres ANSI B1.1 Class 2A fit

OVERVIEW

Product Description

Stainless Steel Threaded bars that ease the need to have precise threading for mechanical applications are the most popular in the fastener manufacturing. 304 threaded and 316 stainless steel threaded options are commonly used in these bars. 316 stainless steel threaded bars, including a2-70 threaded rod and acme threaded rod, are known for their high corrosion resistance. Double ended threaded rods and threaded rods in various sizes like M12 stainless steel are frequently used in various industries.

Stainless Steel threaded bars are used in various sectors such as construction, marine, automobile, plumbing, manufacturing, etc. They work as a fastener to join metal or wood together or act as a pin to connect the two materials. They are also used in special-purpose machines where proper alignment is required. Laxcon, as a top Stainless Steel threaded bar manufacturer in India, delivers high precision across the entire range of Stainless Steel threaded bars.

Composition limits for the 304 and 316 grades behind the A2, A4, B8 and B8M classes are in the grade reference. What those class marks control is set out in the threaded bar handbook.

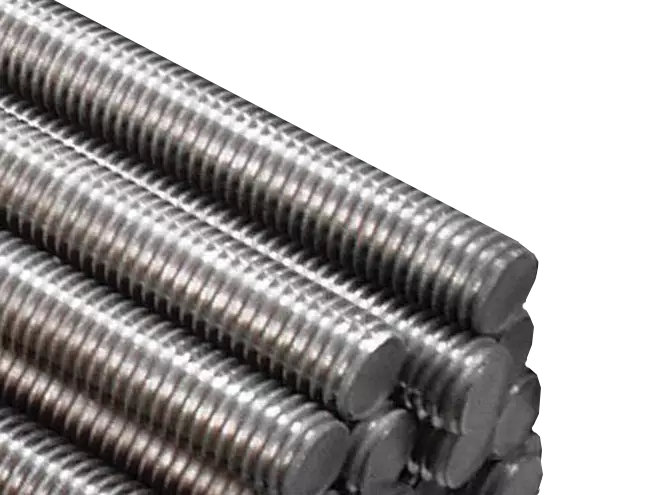

Stainless steel threaded bars produced by Laxcon Steels

SPECIFICATION

Supply Conditions

Size range: M 6 - M 45 (1/4" - 1-3/4")
Grade: A2 / 304 (Class- 50, 70, 80)
B 8 / 304 (Class-1 & 2)
A4 / 316 (Class- 50, 70, 80)
B8M / 316 (Class-1 & 2)
Threading Method: Thread Rolling
Threading condition: Fully Threaded
Tolerance: ASME B1.1 & B1.13M
Thread Type: ANSI B1.1 Class 2A Fit
Length: Up to 6 metres
Applications: Fasteners, Construction, Automotive, Fittings and many others

Both ends checked with GO / NOGO gauge
Free from Radioactive elements, Mercury & Lead contamination
Grade confirmation through PMI testing with Handheld Spectrometers
Weight per metre for every listed size: metal weight calculator

Size Range

Conditions	Metric size	Inch size
CLASS 1, 2, 50, 70 & 80	M 6 to M 45	1/4" to 1-3/4"

Governing standards

ISO 3506-1: Mechanical properties of corrosion-resistant stainless steel fasteners: the A2-70, A2-80, A4-70 and A4-80 property classes.
ASTM A193/A193M: Alloy-steel and stainless steel bolting for high temperature or high pressure service: the B8 and B8M classes.
ASME B1.1: Unified inch screw threads: the 2A external thread class.
ASME B1.13M: Metric screw threads, M profile.
EN 10088-3: Stainless steels: technical delivery conditions for semi-finished products, bars, rods, wire, sections and bright products for general purposes. Composition, heat treatment condition and mechanical properties per grade.
EN 10204: Metallic products, types of inspection documents: the 2.2 test report and the 3.1 and 3.2 inspection certificates a purchase order can call for.

Property classes of the threaded bar grades

Marking	Base grade	Standard	Minimum tensile strength	Minimum 0.2 percent proof stress
A2-50	304	ISO 3506-1	500 MPa	210 MPa
A2-70	304	ISO 3506-1	700 MPa	450 MPa
A2-80	304	ISO 3506-1	800 MPa	600 MPa
A4-50	316	ISO 3506-1	500 MPa	210 MPa
A4-70	316	ISO 3506-1	700 MPa	450 MPa
A4-80	316	ISO 3506-1	800 MPa	600 MPa
B8 Class 1	304	ASTM A193	515 MPa	205 MPa
B8M Class 1	316	ASTM A193	515 MPa	205 MPa
B8 Class 2 (up to 19 mm)	304	ASTM A193	860 MPa	655 MPa
B8M Class 2 (up to 19 mm)	316	ASTM A193	760 MPa	655 MPa

ISO 3506-1 classes apply to thread diameters up to M39 for class 50 and to M24 for classes 70 and 80 unless the standard's larger-diameter tables are invoked; ASTM A193 Class 2 properties fall with diameter above 19 mm. The class 50 condition is annealed, 70 is cold worked and 80 is high-strength cold worked; Class 1 is carbide solution treated and Class 2 is solution treated and strain hardened.

Rolled thread against cut thread

Laxcon threads by rolling: the bar is passed between dies that displace metal into the thread form rather than cutting it away, so the grain follows the flank and root, the root is cold-worked and smooth, and the fatigue strength of the finished thread is higher than that of a cut thread of the same size. The thread form is the unified inch profile of ASME B1.1 to the 2A external class, or the metric M profile of ASME B1.13M, from M6 to M45 (1/4 to 1-3/4 inch), fully threaded, in lengths to 6 metres.

A 316 bar (A4 or B8M) is specified over a 304 bar (A2 or B8) where the fastener sees chlorides, coastal air or process chemicals; both are non-magnetic and both are supplied in the strength class the joint design calls for. What the class marks control, and how the stud, rod and bar forms differ, is set out in the threaded bar handbook. Weight per metre of a threaded bar is below the plain bar figure because the thread removes the crest; the plain-bar weight is an upper bound.

Frequently Asked Questions

What stainless steel threaded bar sizes does Laxcon publish?

Laxcon publishes stainless steel threaded bars from M6 to M45, fully threaded, in lengths up to 6 metres.

Which stainless steel grades and strength classes are available?

Published options for threaded bars are A2 or 304 in classes 50, 70 and 80; B8 or 304 in classes 1 and 2; A4 or 316 in classes 50, 70 and 80; and B8M or 316 in classes 1 and 2.

Which thread method and standards are used?

Threads on stainless steel threaded bars are roll formed and supplied to ANSI B1.1 Class 2A fit.

How can stainless steel threaded bars be packed and traced?

Laxcon packs stainless steel threaded bars in standard bundles of 500 to 1,000 kg with HDPE or LDPE wrapping and two lifting slings. ISPM 15 wooden boxes and fibre-tube packing are available, and every bundle is marked with heat number, grade, size, and net and gross weight.

What should an RFQ for stainless steel threaded bars include?

An enquiry for stainless steel threaded bars is quotable when it states the grade, governing standard, metric size or profile, tolerance, finish or heat-treatment condition, length, quantity, test or inspection requirement, and delivery destination.
