Forging Quality Stainless Steel Ingots

Forging quality stainless steel ingots, square, fluted and round, from 1,160 kg to 22,000 kg a piece

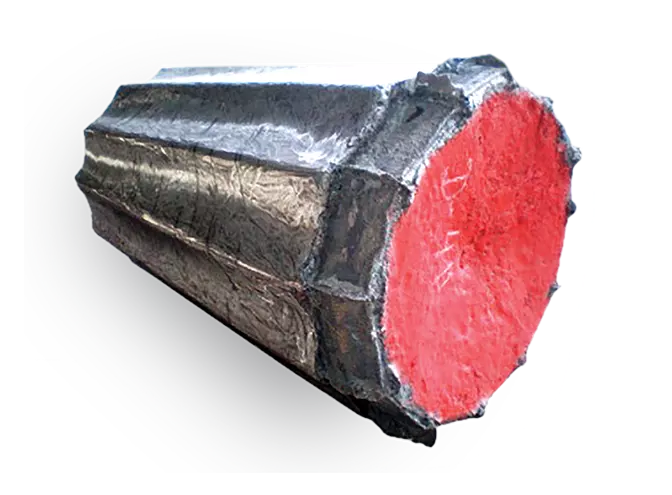

Forging quality stainless steel ingots produced by Laxcon Steels

Product Description

Forging quality stainless steel ingots are cast blocks of stainless steel made as the starting stock for open die forging, upsetting and ring rolling. Laxcon Steels pours them in square, fluted and round moulds from 1,160 kg to 22,000 kg a piece, spot ground or fully ground.

We produce high-quality stainless steel for forging applications. Our wide range of size viability gives customers the right to choose the right sizes based on their applications. Stainless steel ingots are used for direct upsetting forging, open die forging, Re-Rolling, Ring Rolling, Flanges, sst profile, and other engineering cases.

Composition limits for the grades poured are published in the grade reference, and the melting and casting route is described on the technology page.

Ingot Specifications

Unit weight
1,160 kg - 22,000 kg per piece
Shapes
Square, fluted and round
Surface condition
Spot ground or fully ground, free from surface defects and cracks
Contamination
Free from radioactive elements, mercury and lead
Testing
PMI grade check with handheld spectrometers
Marking
Heat number, colour code, grade, size and weight on every piece
Applications
Open die hot forging, re-rolling and ring rolling
Production
Made to order
Certifications
AS9100:2016 Rev. D, Well Known Steel Maker

Available Sizes

Size Range

Mould size (mm)Mould size (in)ShapeIngot weight (kg a piece)
330 × 380 × 157513 × 15 × 62"Fluted1,160
330 × 380 × 157513 × 15 × 62" (OPEN)Square1,550
355 × 430 × 183014 × 17 × 72"Square2,050
420 × 510 × 165016.5 × 20 × 65"Square2,550
530 × 585 × 170021 × 23 × 67"Fluted3,400
510 × 610 × 185520 × 24 × 73"Square4,100
585 × 685 × 178023 × 27 × 70"Fluted5,100
685 × 760 × 157526 × 31 × 62"Fluted6,100
800 × 965 × 185531.5 × 38 × 73" (M-9)Fluted10,200
965 × 1195 × 178038 × 47 × 70" (M-13)Fluted14,500
1080 × 1330 × 222042.5 × 52.5 × 87.5" (M-18)Fluted22,000
400 × 230016" × 90.5"Round2,200
500 × 220019-2/3" × 86.6"Round3,800
600 × 200024" × 79"Round5,100
400 × 400016" × 158"Round3,800
500 × 400019-2/3" × 158"Round5,800
580 × 400023" × 158"Round8,460

Ingot Reference

Governing standards

EN 10088-3
Stainless steels: technical delivery conditions for semi-finished products, bars, rods, wire, sections and bright products for general purposes. Composition, heat treatment condition and mechanical properties per grade.
ASTM A314
Stainless steel billets and bars for forging.
ASTM A473
Stainless steel forgings.
EN 10204
Metallic products, types of inspection documents: the 2.2 test report and the 3.1 and 3.2 inspection certificates a purchase order can call for.

Ingot against billet

An ingot is poured into a cast-iron mould and solidifies from the outside in, which gives it the coarse cast structure a forge then refines by working; the fluted mould, with its corrugated faces, resists the surface cracking of a large square as it cools. A continuously cast billet or bloom solidifies in a water-cooled copper mould as it is drawn, is smaller and more uniform, and is the feedstock for rolling. A forging that needs a large starting mass, a high reduction ratio or a size the caster does not produce is made from an ingot; everything else starts as a billet.

Ingots from 1,160 kg to 22,000 kg are poured in the square, fluted and round shapes listed, in the grades of the grade register, and are supplied spot ground or fully ground for open-die forging, ring rolling, upsetting and re-rolling.

Frequently Asked Questions

What stainless steel ingot weights are available?

Laxcon pours forging quality ingots from 1,160 kg to 22,000 kg per piece. The table on this page lists the standard metric mould sizes, shapes and individual weights.

Which ingot shapes and surface conditions are supplied?

Forging quality ingots are cast in square, fluted and round moulds. They are supplied spot ground or fully ground and free from visible surface defects or cracks.

How is each forging ingot identified?

Every forging quality ingot is marked with its heat number, colour code, grade, size and weight. Grade confirmation is performed with handheld PMI equipment.

Which ingot mould sizes does Laxcon pour?

Square and fluted ingots are poured in eleven sizes from ten moulds, from 330 × 380 × 1575 mm to 1080 × 1330 × 2220 mm. Round ingots are cast 400 mm to 600 mm in diameter and 2,000 mm to 4,000 mm long. The size table above gives each mould in millimetres and inches with its weight.

Are round stainless steel ingots available?

Yes. Round ingots weigh 2,200 kg to 8,460 kg: a 400 mm round 2,300 mm long weighs 2,200 kg, and a 580 mm round 4,000 mm long weighs 8,460 kg.

Which grades are forging quality ingots made in?

Ingots are poured in the grades of the grade register. Ingots from the M-9 mould upward (10,200 kg and heavier) are not offered in 400 series grades, the martensitic and ferritic families.

Which standards apply to stainless steel forging ingots?

The governing standards are EN 10088-3 for the stainless steel, ASTM A314 for stainless steel billets and bars for forging, ASTM A473 for stainless steel forgings, and EN 10204 for the inspection document.

What is the price of stainless steel ingots?

Stainless steel ingots are priced per tonne, and the price depends on the grade, the mould size, the surface condition and the quantity ordered. Laxcon Steels quotes each order on request; what moves the price of stainless steel in general is set out in the stainless steel price article.

More questions

What is the largest stainless steel ingot Laxcon pours?

The largest is the M-18 fluted ingot, cast in a 1080 × 1330 × 2220 mm mould (42.5 × 52.5 × 87.5 inches) and weighing 22,000 kg (22 MT). The M-13 mould gives a 14,500 kg ingot and the M-9 mould a 10,200 kg ingot.

Why are the larger ingots cast in fluted moulds?

A fluted mould has corrugated faces, which resist the surface cracking of a large square ingot as it cools. Every ingot from the 530 × 585 × 1700 mm mould (3,400 kg) upward is fluted, except the 510 × 610 × 1855 mm square ingot of 4,100 kg.

What are forging quality ingots used for?

Forging quality ingots are used for open die hot forging, direct upsetting, ring rolling, re-rolling and flanges. A forging that needs a large starting mass, a high reduction ratio or a size the caster does not produce starts from an ingot.

How does Laxcon make stainless steel ingots?

Laxcon melts stainless scrap in electric melting furnaces in its own Steel Melting Shop, refines the steel in an AOD converter and a ladle refining furnace, and bottom pours it into cast-iron moulds. The ingots are then spot ground or fully ground. The equipment is listed on the technology page.

What is the difference between an ingot and a billet?

An ingot is poured into a static mould and is larger, while a billet is continuously cast and smaller; the ingot, bloom, billet and slab article compares the semi-finished forms of steel.
